Benchmarks

All benchmarks were run on an Intel Xeon Gold 6234 (8 physical cores, 16 logical processors via HyperThreading) under WSL2. Example data shipped with the package was used throughout: the IVUS rest/stress pullbacks for the step-size benchmark and the OCT pullback (280 frames) for the parallelization benchmark.

1. Algorithmic improvement: bruteforce vs. optimized

The optimized alignment algorithm uses a coarse-to-fine hierarchical search instead of evaluating every candidate angle exhaustively. The effect is small at coarse step sizes (few angles to evaluate) but grows rapidly as the step size decreases, because the number of candidate angles scales as \(n = 2 \times \text{range} / \text{step}\).

Test setup — from_file_full on the IVUS rest/stress example data, range_rotation_deg = 90°, write_obj = False, smooth = False, postprocessing = False. Three repetitions per condition; median wall time reported.

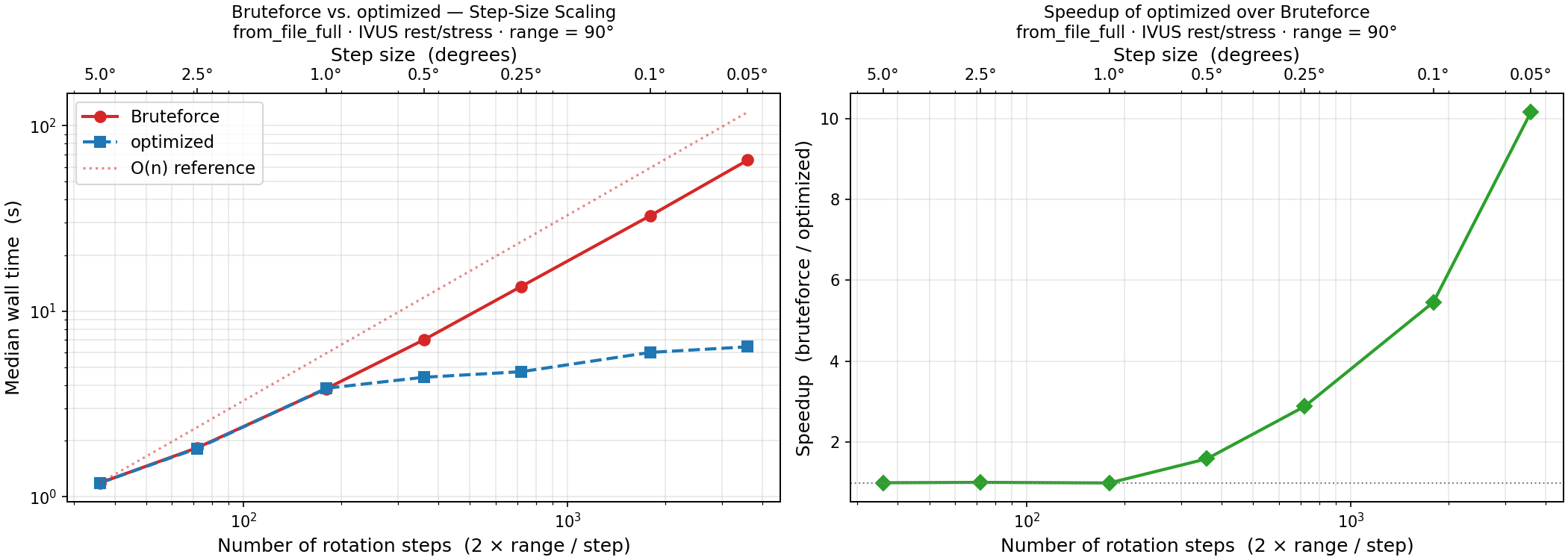

Bruteforce vs. optimized alignment wall time and speedup across step sizes

Fig. 7 Wall time (left, log-log) and speedup factor (right) of the optimized algorithm over bruteforce as a function of the rotation step size. The O(n) reference line confirms the linear scaling of bruteforce with the number of candidate angles; the optimized search is sub-linear.

At step sizes of 1° and above the difference is modest (< 2x). Below 1° the gap widens substantially: at 0.1° the optimized algorithm is 5.5x faster and at 0.05° the advantage grows to 10.3x (6.25 s vs. 64.4 s). This is the practically relevant regime: fine step sizes are required for high-accuracy alignment of OCT data and dense IVUS pullbacks.

2. parallelization scaling

The second benchmark tests how much additional speed is gained by increasing the number of CPU cores, using from_array_single on the OCT dataset (280 frames, step_rotation_deg = 0.01°, range_rotation_deg = 6°). Each core count was run in a fresh subprocess so that rayon’s global thread pool re-initialises from RAYON_NUM_THREADS.

Table 1 Median wall time (s) across CPU core counts

Cores

Bruteforce (s)

optimized (s)

Alg. speedup

Core scaling (opt.)

2

92.36

10.08

9.2x

1.00x (baseline)

4

46.78

5.56

8.4x

1.81x

8

24.27

3.49

7.0x

2.89x

12

16.74

2.64

6.3x

3.82x

16

14.15

2.40

5.9x

4.20x

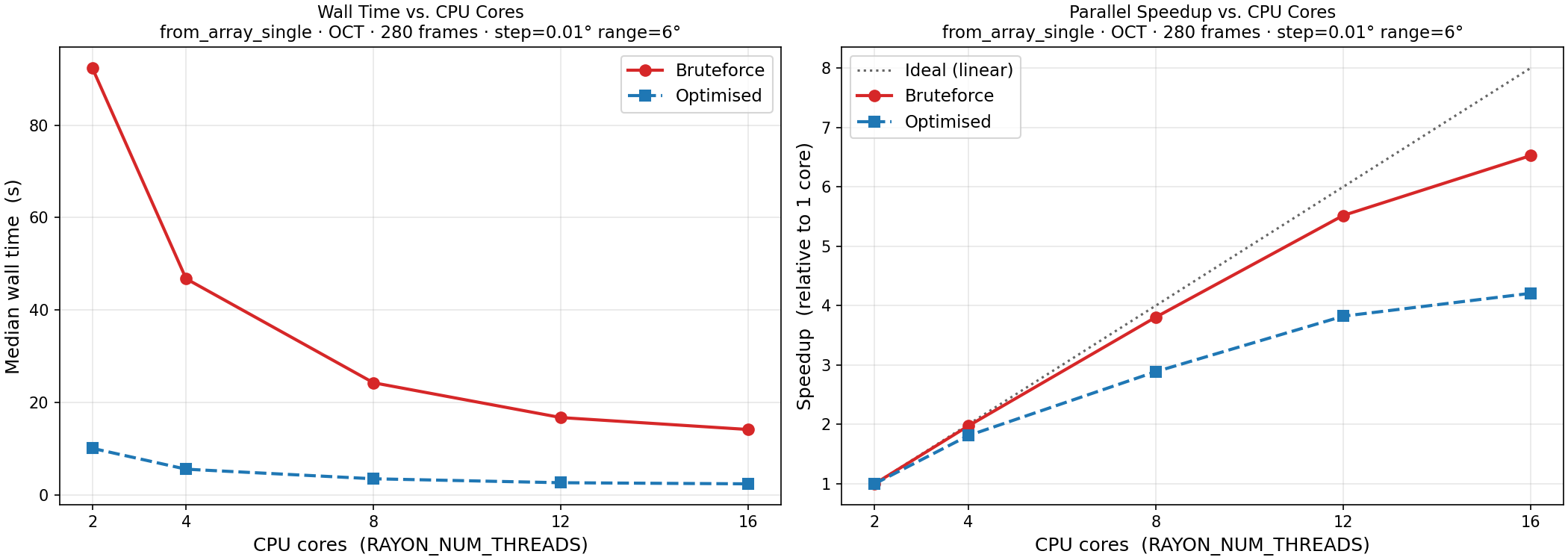

Bruteforce vs. optimized alignment speedup across differnet cpu cores

Key observations

  • Parallelizing the angle search inside search_range (rather than the point-rotation loop) provides enough rayon tasks per frame to utilise cores effectively: bruteforce scales 6.5x from 2 to 16 cores, optimized scales 4.2x — both close to practical expectations under Amdahl’s law given the sequential frame-dependency chain.

  • The previous 8-core anomaly (WSL2 HyperThreading interference) has disappeared. With hundreds of angle-evaluation tasks per frame, rayon keeps all workers busy and the idle HT sibling effect is negligible.

  • The optimized algorithm remains 5.9-9.2x faster than bruteforce at every core count, with the gap slightly narrowing at higher core counts because bruteforce has more angles to parallelize and therefore scales more aggressively.

  • The two gains compound: relative to bruteforce at 2 cores (92.4 s), the optimized algorithm at 16 cores (2.40 s) achieves a combined 38.5x speedup — roughly 9x from the algorithm and 4x from parallelization.

Conclusion — algorithm choice and hardware scaling are now both meaningful levers. For the best achievable throughput, use the optimized algorithm on as many cores as available; for rapid prototyping where accuracy matters less, coarser step sizes reduce runtime regardless of core count.
